Bereichsmonitor CAS

area alarm unit
for separate connection with valve box (sensors) or for connection with area
alarm unit VENTUS valve box as repeater alarm.
Digital display with touch screen 5 inch
Casing for on-wall installation
input analog sensors (4-20 mAh - 24 V):
Line 1 -
Line 2 -
Line 3 -
Line 4 -
Line 5 -
Line 6 -
input digital (Volt free - on-/off-signals):
Line 1
Line 2 -
Line 3 -
Line 4 -
Line 5 -
Line 6 -
Line 7 -
Line 8 -
optional: relay module for onward transmission of alarm conditions to BMS or
another place.
relay module : yes / no
Configuration repeater : yes / no
Network : activated / not activated
language : ***
alarm settings
unit : bar
upper / lower limit
O2, AIR, CO2, N2O,N2 : 6.0 / 4.0
VAC :-0,4 / -1,0
AIR-800 : 9.6 / 6.4
technical data:

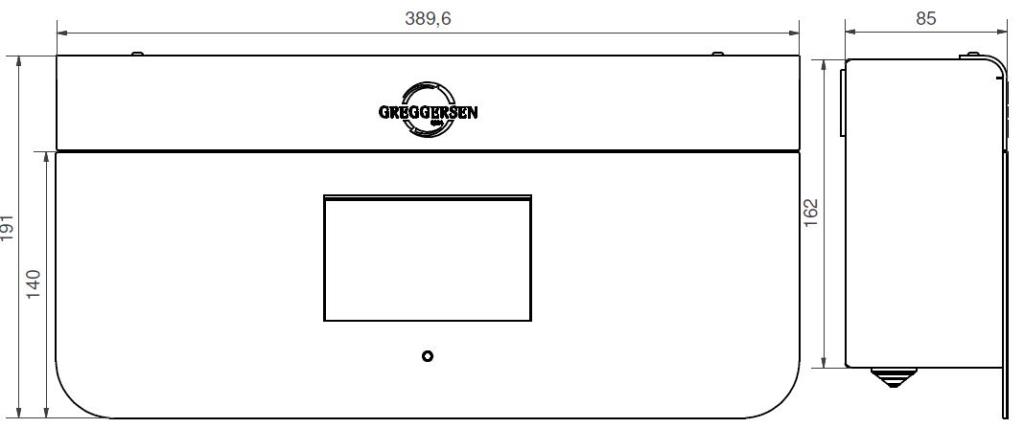

dimensions (width x height x depth) :390x190.5x85mm
power supply :110 - 230V AC/ 50-60Hz
power input :500 mA
inlet : max.6 analog signals
max.8 digital signals
outlet :1 onboard relay standard
(normally open contact); Ethernet
capacity onboard relay :30VDC (1A) /125VAC(0.5A)
