Automatic Changeover Manifolds

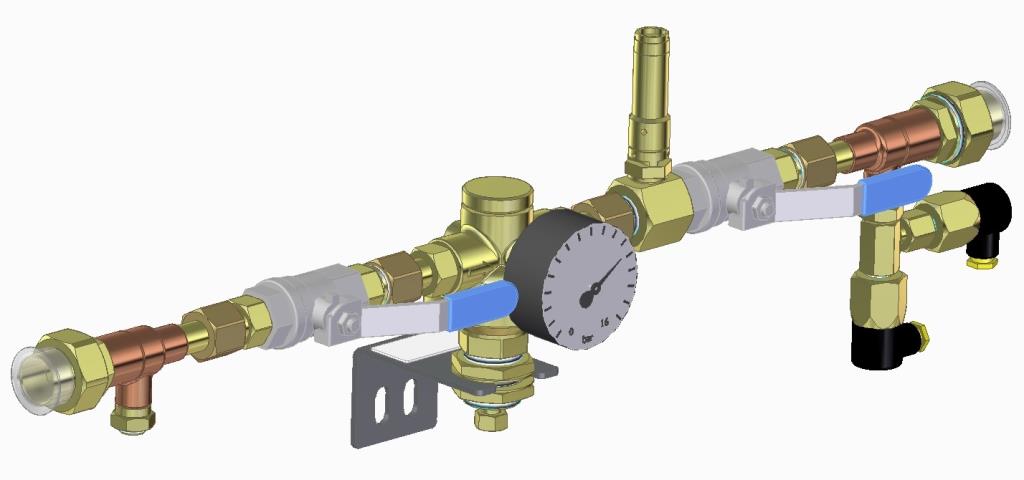

Druckminderereinheit 5 bar AIR Druckminderereinheit zur Reduzierung auf 5 bar Bauart: 1 Druckminderer 1/2" ED: 16 bar red.auf 5 bar mit Wandwinkel 1 Sicherheitsventil in öl- und fettfreier Ausführung 6 bar 2 Kugelhähne 1/2" 1 Kontaktgebereinheit (Öffner/Schließer) 1 Betriebsdruckmanometer 63mm 2 Kupferverbindungsrohre 15x1mm Betriebsdruck: 5 bar

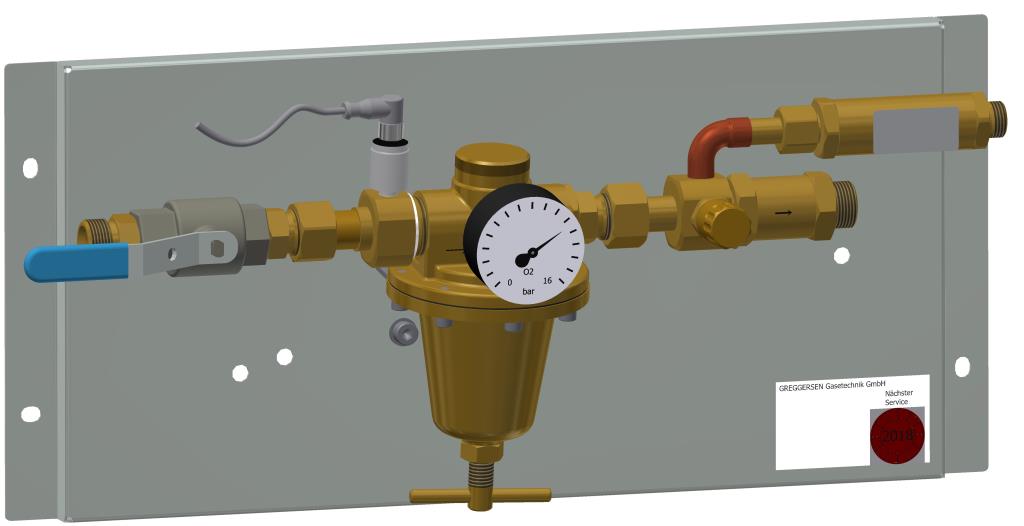

Reducer panel for tank supply Version incl. pressure sensor Medium: ************ (please advise medium) Input pressure: max. 2000 kPa (20 bar) Output pressure: 500 kPa (5 bar) capacity: max. 150 m³/h To reduce the pressure of a liquide tank; Unit meet the requirements of the standard for medical gas pipeline system DIN EN 737 part 3. Max. input pressure: 20 bar; output pressure: 5 bar; incl. Main shut-off valve, pressure reducer, pressure gauge and safty valve; complete mounted on an instrument panel. incoming & outgoing: 22mm soldered connection outgoing safty valve: 15mm soldered connection

reducer panel compressed air for reduction of tank pressure to 5 bar, execution according to DIN 13260-part 1, every pressure reduction step double designed with shut-off valves, safety valve, contact switch, mounted on assembly panel size:        1 capacity:        50 Nm³/h gas:        compressed air / AIR pressure:        500 kPa (5 bar) contact switch:    400 / 600 kPa (4 bar / 6 bar)

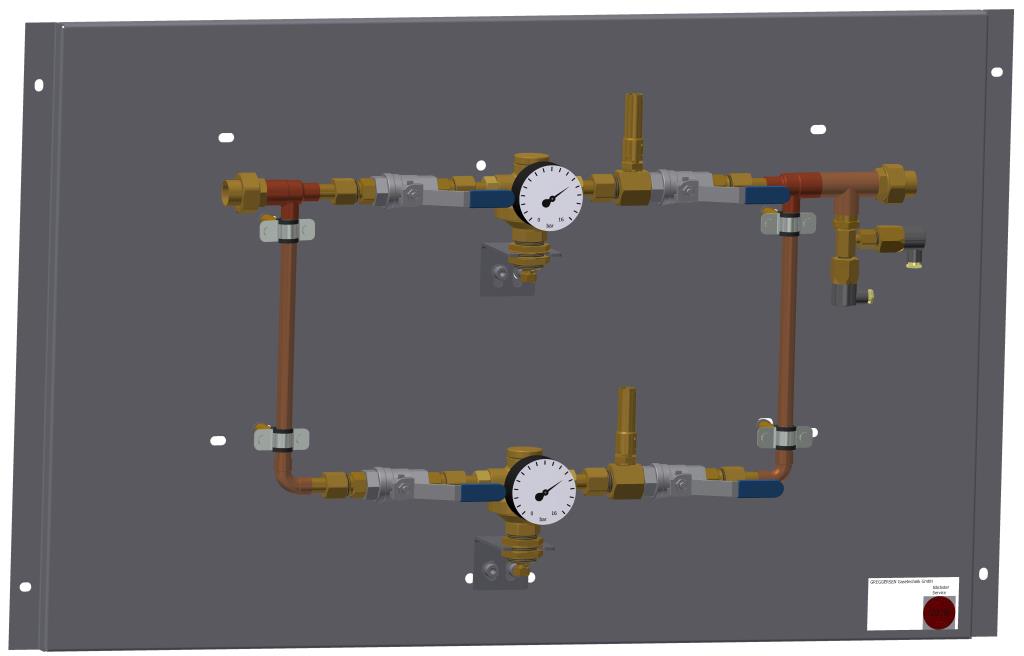

reducer panel compressed air for reduction of tank pressure to 8 bar, execution according to DIN 13260-part 1, every pressure reduction step double designed with shut-off valves, safety valve, contact switch, mounted on assembly panel size:        1 capacity:        50 Nm³/h gas:        compressed air / AIR pressure:        800 kPa (8 bar) contact switch:    600 / 1000 kPa (6 bar / 10 bar)

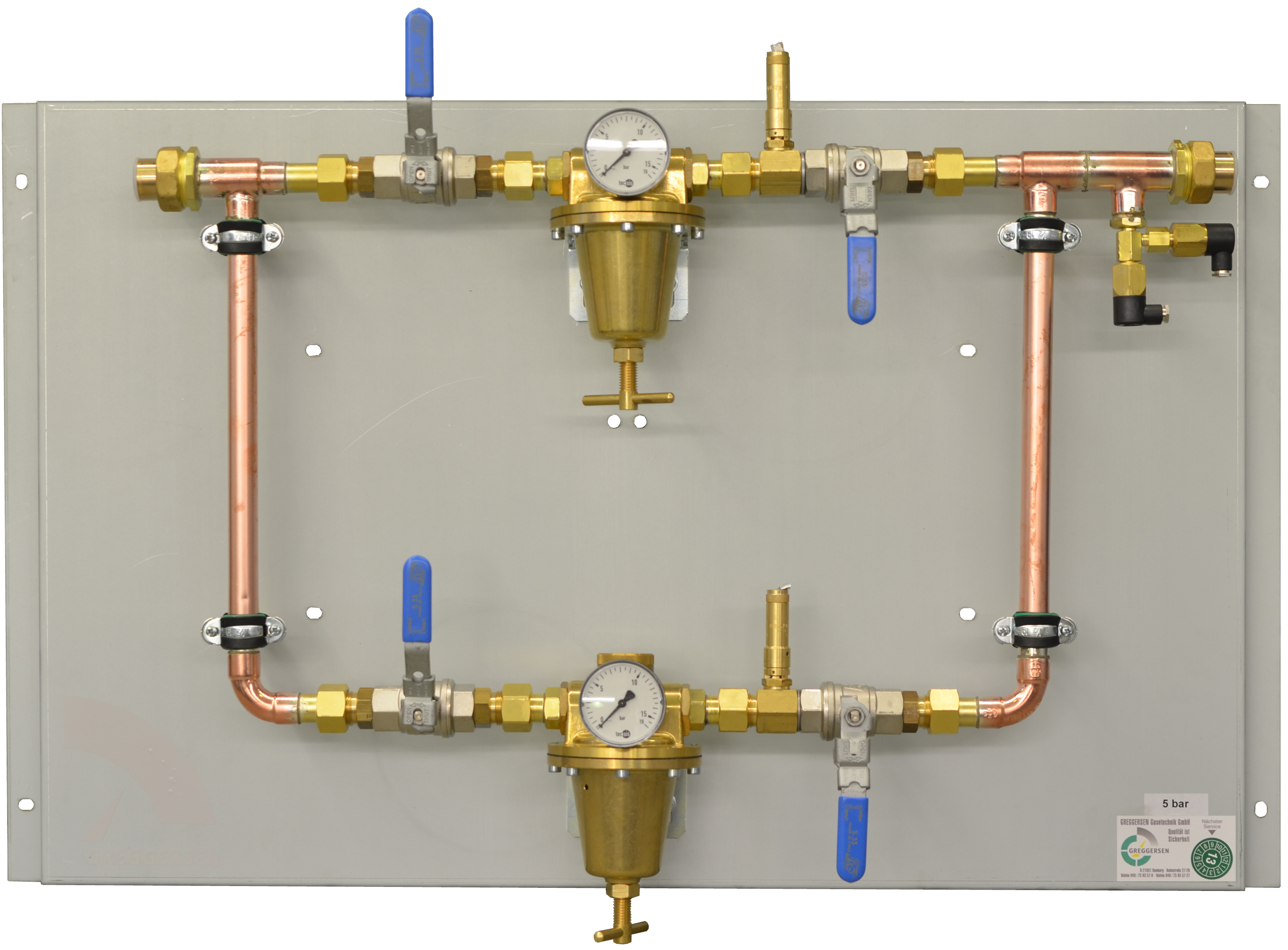

Reducer panel compressed air for reduction of tank pressure to 5 bar according to DIN 13260 part 1 each pressure reduction step doubled with shut-off valves, contact switch, mounted on an assembly panel size 2 capacity: 300 Nm³/h gas: compressed air / AIR pressure:        500 kPa (5 bar) contact switch:    400 / 600 kPa (4 bar / 6 bar)

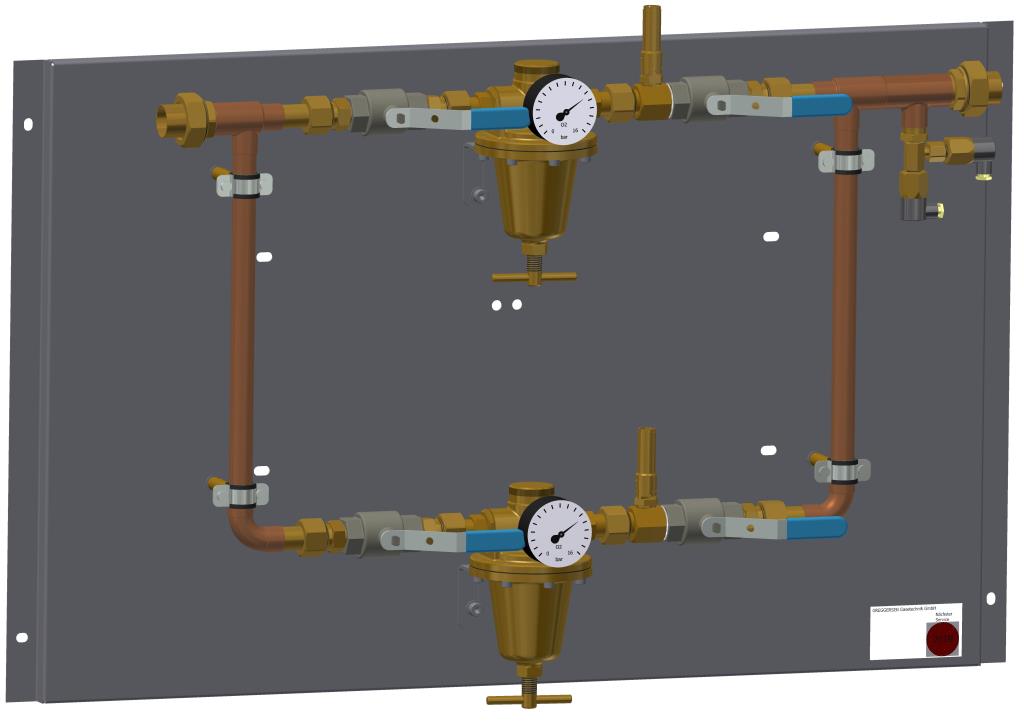

Reducer panel compressed air for reduction of tank pressure to 8 bar according to DIN 13260 part 1 each pressure reduction step doubled with pressure switch for high- and low-pressure and shut-off valves, mounted on an assembly panel size 2 capacity: 300 Nm³/h gas: compressed air 8 bar / AIR-800 pressure:        800 kPa (8 bar) contact switch:    600 / 1000 kPa (6 bar / 10 bar)

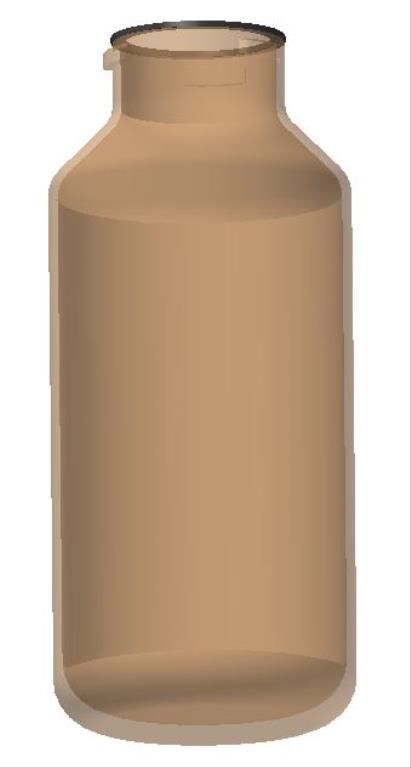

Replacement bottle for secretion collection unit 903500 consisting of: 5-l-secretion container, plastic seal

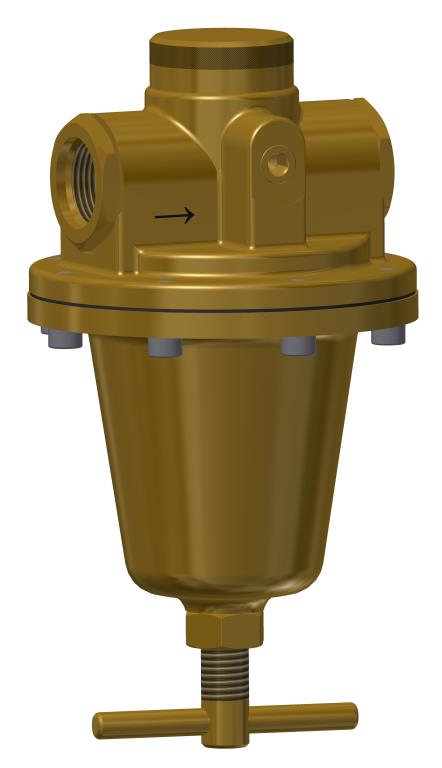

pressure reducer G 3/4 setting range: 0,5 - 10 bar, inlet: G3/4"i outlet: G3/4"i capacity: about 200 Nm³/h oil-free and greaseless for oxygen

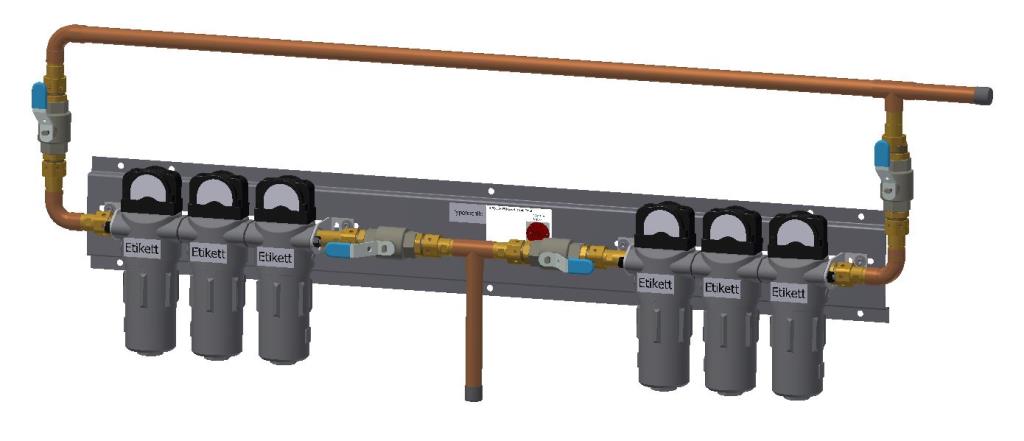

Compressed air filter unit, size 1 (50m³/h) For the compressed air preparation according to ISO 7396-1. Redundant filter combination consists of Particle filter, activated carbon filter and bacteria filter. Redundant system with parallel circuit of filtering phases. The replacement of filter elements during maintenance works can be carried out without interruption of the medical gas supply. Technical Specifications: 1. Stage: particle fine filter for excluding even the finest residues Efficiency 99,99% at 0,01µ, waste oil rate up to 0,01mg/m³ , automatic condensate drain; differential pressure gauge; Aluminum body 2. Stage: activated carbon filter for binding odor and flavor substances Efficiency 99,999% at 0,01µ; waste oil rate up to 0,005mg/m³; differential pressure gauge; Aluminum body 3. Stage: bacteria filter for filtering bacterium and spores; The filter element can be sterilized with hot steam. Efficiency 99,99% at 0,01µ; differential pressure gauge; Aluminum body 4 ball valves 3/4" and copper pipe connections. Complete fitted on wall bracket. Connection pipes delivered in Parts. Dimension    : 1100x120x10mm (LxWxH) Inlet         : copper pipe 22 mm Outlet         : copper pipe 22 mm Flow         : 50 m³/h at 7 bars Max.        : 16 bar Weight         : 12 kg

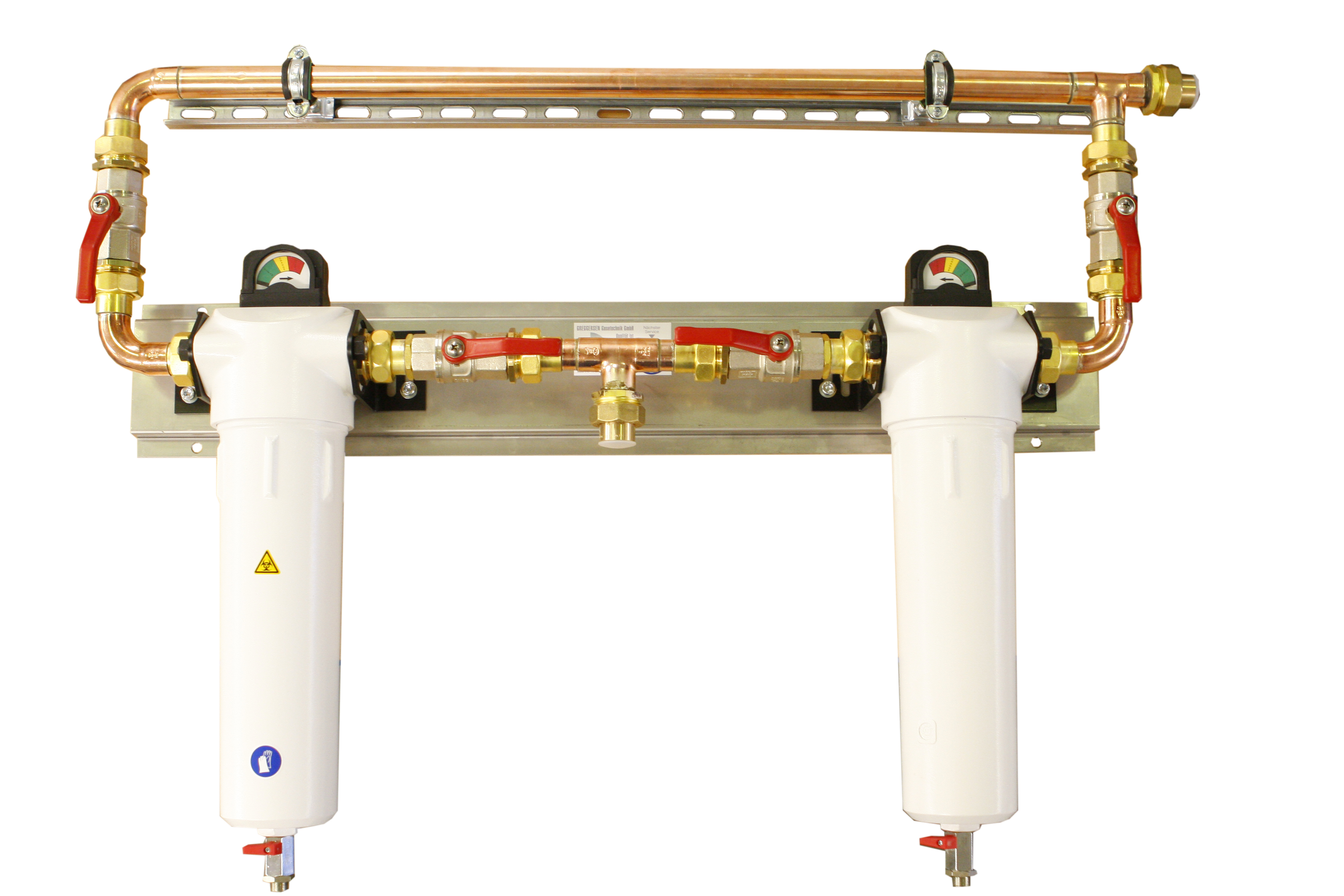

Bacteria-double filter unit 25 to 63 m ³/h vacuum for the protection of the vacuum container and the pumps pollutions with micro-organisms and foreign particles, as well as to the filtering of the sucked off further air. Redundant construction according to EN in 7396-1, servicing works and filter change are possible without interruption of the vacuum supply. The unity is planned for the assembly on a wall fixture. The delivery occurs disassembled. Design consisting of: 4 ball valves 1“ 2 bacterial filters with secretion jar 1 wall assembly 1000 x120 x 10 mm (LxBxH) and pipe clamps for piping fixture Connecting pipe copper 28 mm Technical data: Achievement:     50 m³/h (at atmospheric pressure) Connection:     Copper pipe 28 mm Efficiency:     99,999% with 0,01µ Weight approx.:     16 kg

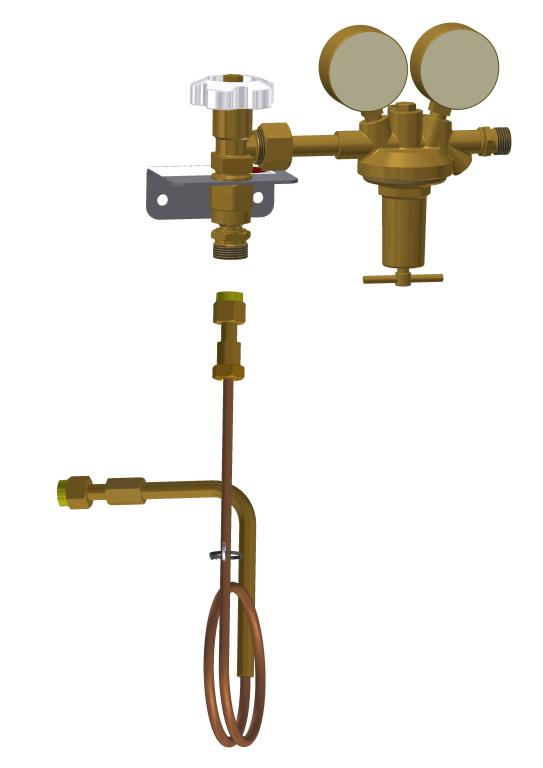

Small Lab Unit for local gas supply with mountig angle, distribution bend, shut-off valve, pressure reducer with high and low pressure gauge and fittings gas:     (please advise medium!) incoming: gas type specific distribution bend outlet:     solder fittings
