Forano, Hinterteil, ger. Rohr, DIN, O2

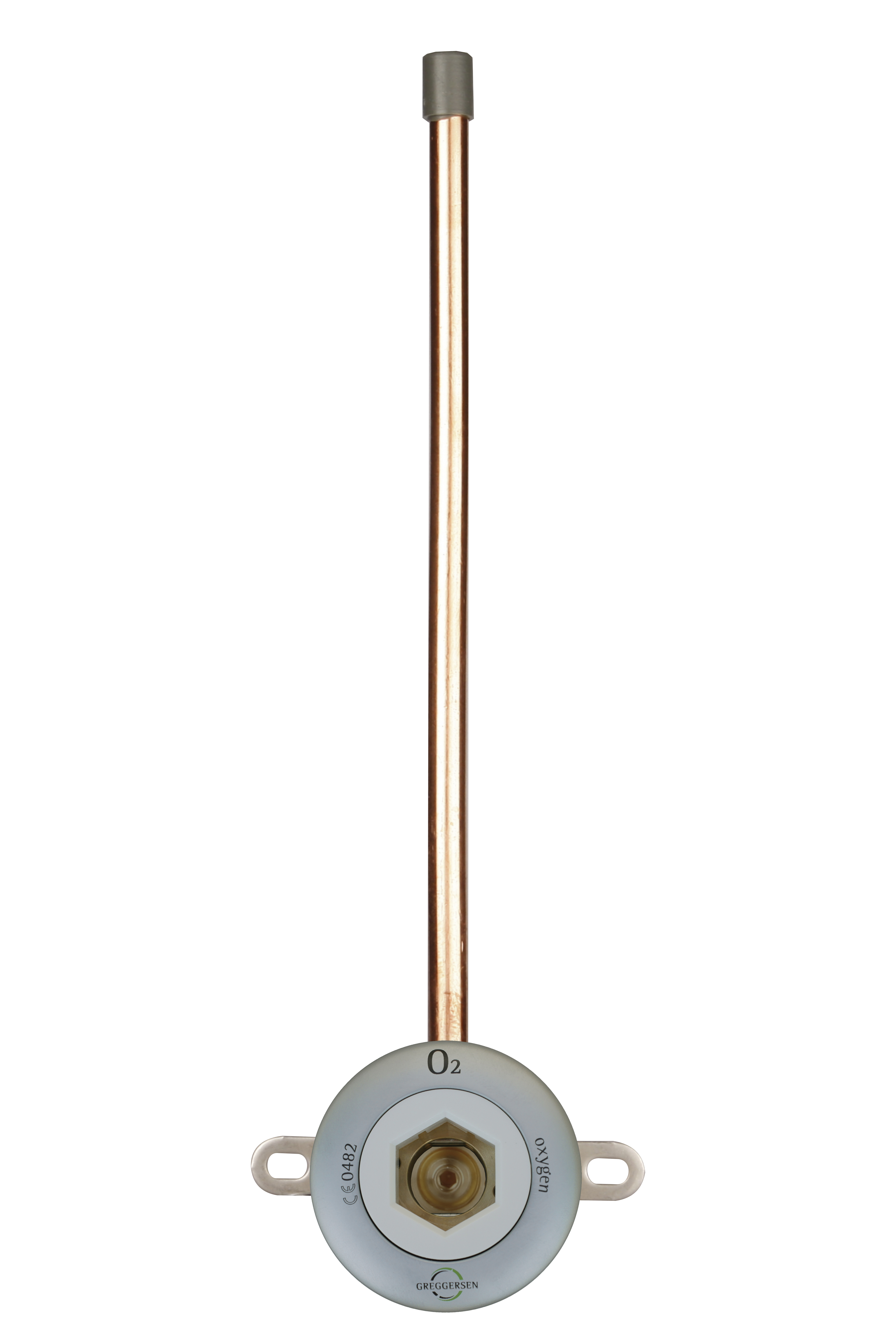

Terminal unit FORANO - base block DIN / AGA / NF
to be build into bed-head unit
medical gas: oxygen / O2
inlet: copper-pipe 8x1mm straight up
gas-specific base block with interface for socket;
to be mouted into bed-head units according to EN 793.

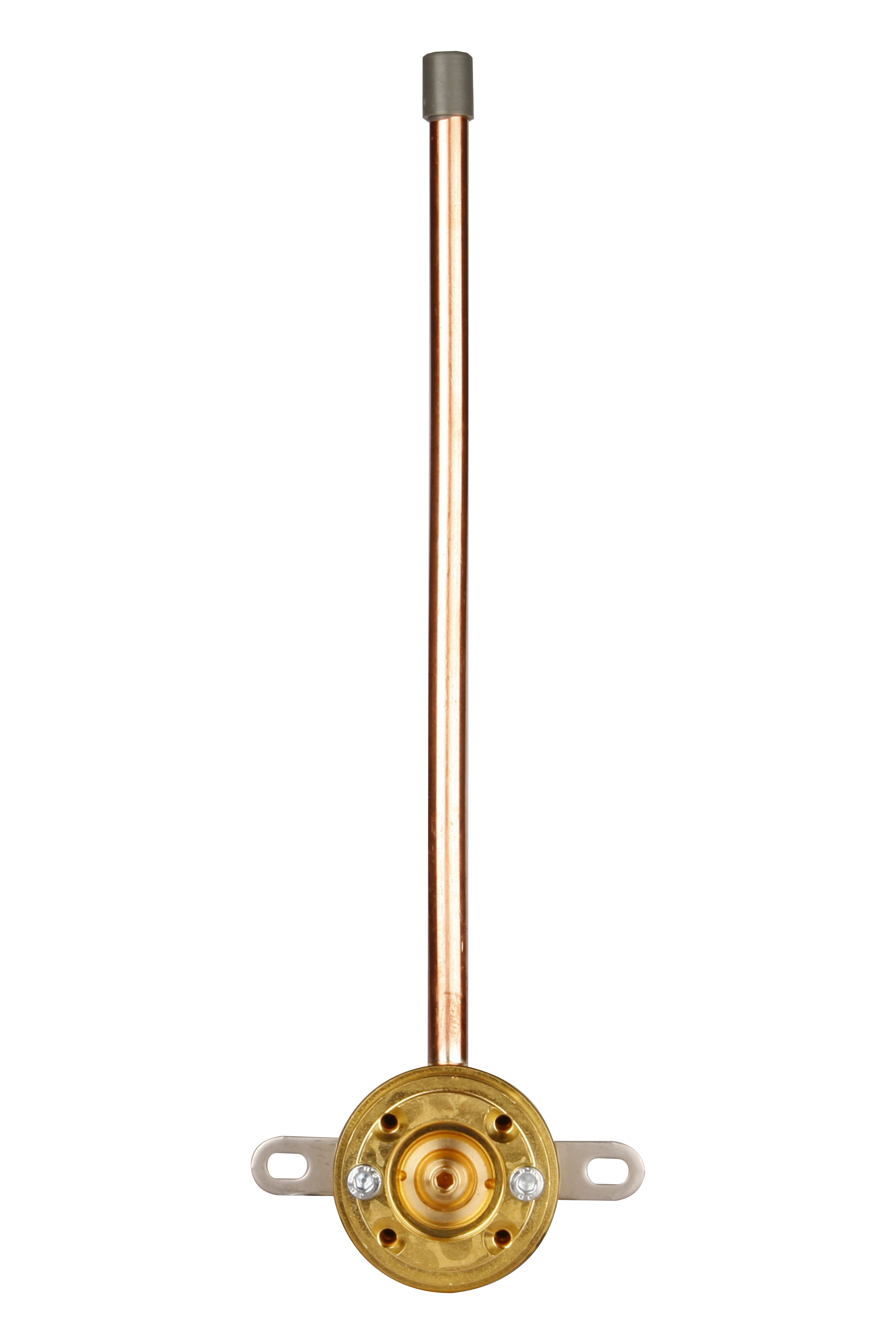

Base block with spacer and mounting bar;
copper pipe soldered connected; integrated
check valve and maintenance valve.

technical details:
mount option: bed-head unit
medical gas: oxygen / O2
inlet: copper-pipe 8x1mm straight up
mounting diameter
for socket : Ø 44 bis 46mm (with collar)

delivery incl.:
- gas-specific base block incl. cu-pipe
- spacer 5mm (1x) and mounting bar

In the future, the rear housings of the gas outlets will no longer bear a CE marking. During the transition period, deliveries may include mixed variants – with and without CE marking on the rear housing.The front parts of the gas outlets will continue to be marked with the CE symbol.
