Flowmeter

Kolibri 2 connector DIN O2 standard long

€201.20

KOLIBRI 2, O2, 0...15 l/min
- Standard DIN PLUG-IN UNIT -
Long version
Flow steps:
0 / 0.5 / 1 / 1.5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min

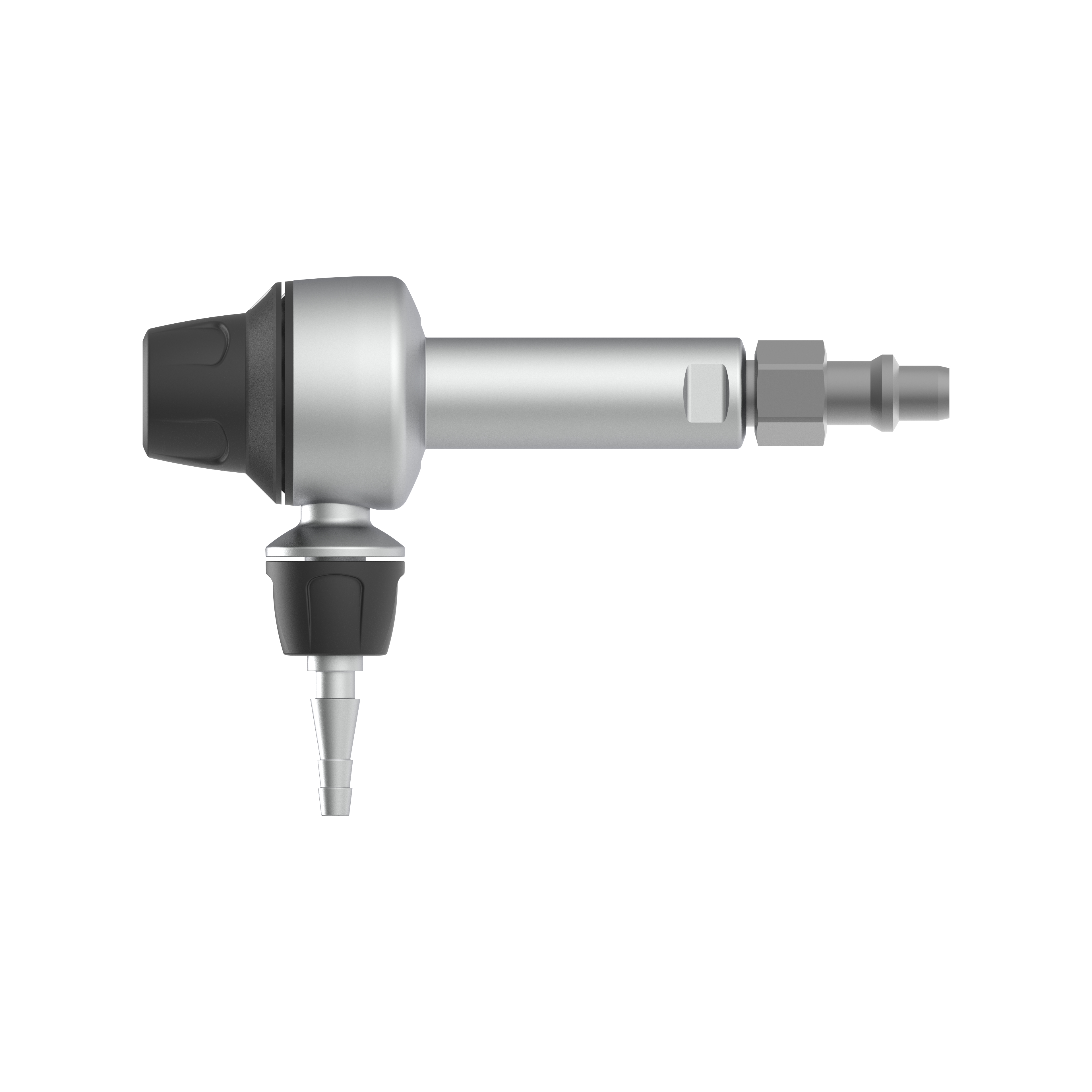

Step-compact flowmeter KOLIBRI 2
with fixed orifices and selector device

Total length "long"
Plug front to center of flow outlet
(Distance from terminal unit to flow nipple):
75 mm (Spacer 60mm)

Medical compact flowmeter for connection
to a terminal unit, with handwheel - stepwise
adjustable flow, outlet 9/16-18 UNF thread

Ergonomically optimized adjustment device and readability
of the set flow step from various perspectives
and angles possible.

Frontal operating concept -> increased safety when
setting the correct flow rate

Gas type:     Oxygen / O2
Connection: Plug according to DIN 13260 Part 2
Outlet:     9/16-18 UNF
Capacity:     0...15 l/min at inlet pressure 450 kPa (4.5 bar)

Accessories required for operation:
900619 - Hose connection 9/16-18 UNF
Product Number: 906404
