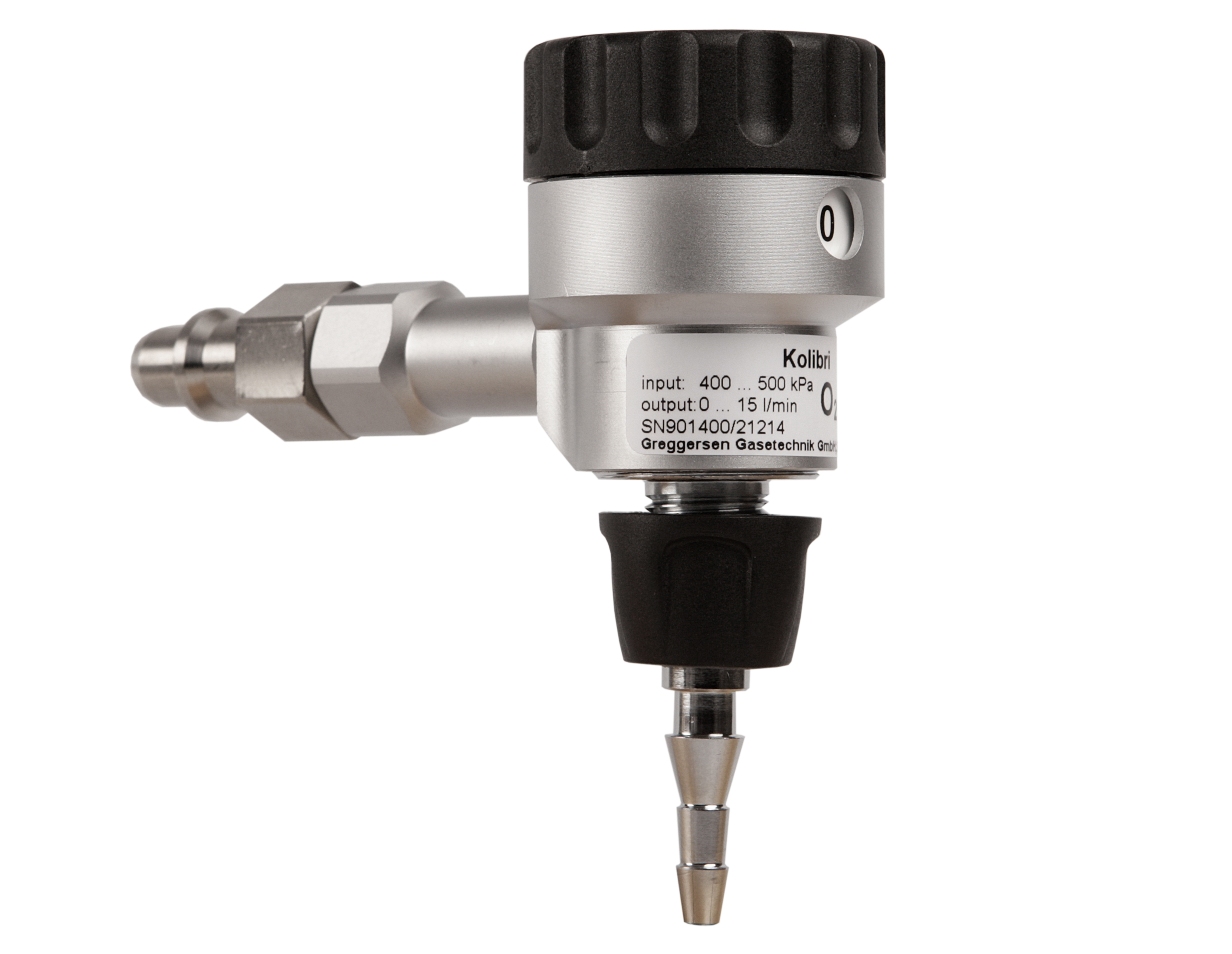

medical compactflowmeter in line with DIN EN ISO 15002
to plug into gas outlets, with hand-wheel flow setting in steps,
output 9/16-18 UNF and hose connector
gas:Â Â Â Â oxygen
incoming:Â Â Â Â plug in line with DIN 13260 part 2
complete length: 88 mm (plug to middle of output)
output:Â Â Â Â 9/16-18 UNF / hose connector
capacity:Â Â Â Â 0...15 l/min
setting steps: 0 / 0,5 / 1 / 1,5 / 2 / 3 / 4 / 6 / 8 / 12 / 15 l/min
Product number:
901400
