Low-Pressure Hose
Angled connector CO2 with 7mm nozzle - AGA
Angled plug with check valve Gas type: Carbon dioxide / CO2 Connection: Plug according to SS 87 524 30 (AGA) Outlet: 7 mm flow nozzle
Angled connector O2 93 hose barb 7mm DIN neut
Angled plug for O2 93 with 7 mm sleeve and check valve Gas type: Oxygen 93 Connection: Plug according to DIN 13260 Part 2 Outlet: 7 mm hose sleeve Colour coding: neutral (black) without gas type identification

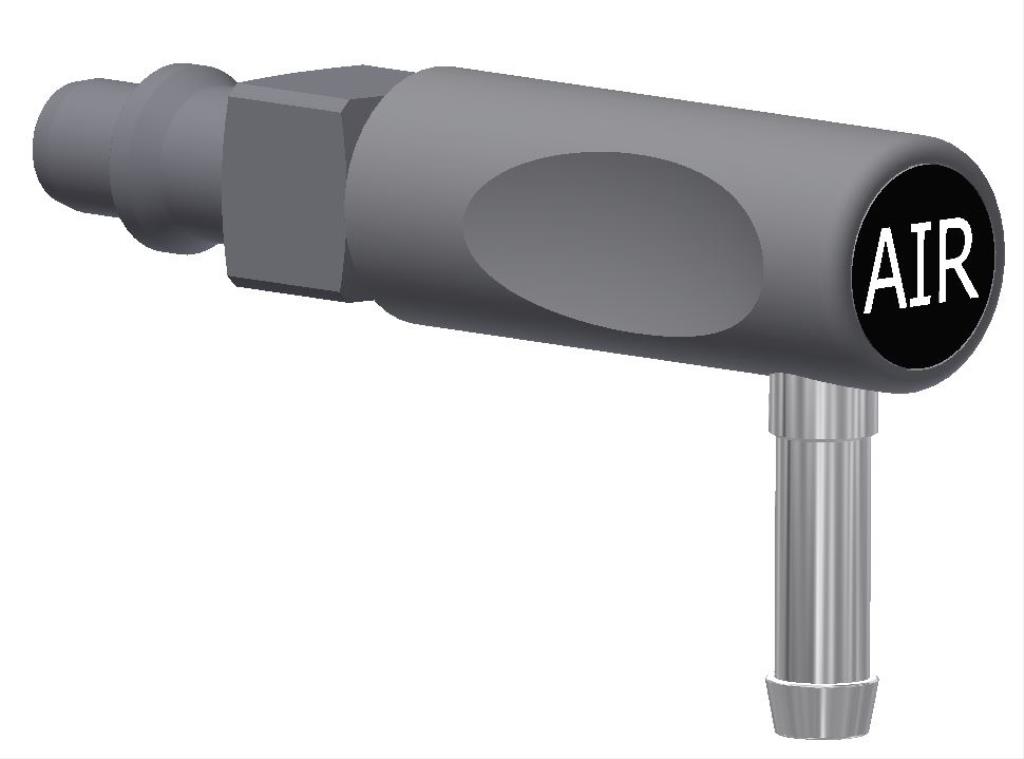

Angled plug AIR nozzle 7mm, DIN, neutral
Angled plug for compressed air with 7 mm sleeve and check valve Gas type: Compressed air / AIR Connection: Plug according to DIN 13260 Part 2 Outlet: 7 mm hose sleeve Colour coding: neutral (black)
Angled plug AIR nozzle 7mm, DIN,ISO V4A
Angled plug for compressed air with 7 mm nozzle and check valve Plug front part made of 1.4404 (stainless steel) Gas type: Compressed air / AIR Connection: Plug according to DIN 13260 Part 2 Outlet: 7 mm hose nozzle Colour coding: according to ISO 9170-1 (black/white)
Angled Plug AIR with 7mm Hose Tail - AGA
Angled plug with check valve Specification: Gas type: Compressed air Inlet: Plug according to SS 87 524 30 (AGA) Outlet: Hose barb 7 mm
Angled Plug AIR with 7mm Hose Tail - NF
Angled plug with check valve Specification: Gas type: Compressed air Inlet: Plug according to norme francaise NF S 90-116 Outlet: Hose barb 7 mm
Angled plug AIR-800 nozzle 7mm DIN neut
Angled plug for oxygen with 7 mm nozzle and check valve Gas type: AIR-800 Connection: Plug according to DIN 13260 Part 2 Outlet: 7 mm hose nozzle Colour coding: neutral (black)
Angled Plug AIR800 with 7mm Hose Tail - AGA
Angled plug with non-return valve Gas type: Compressed air 800 / AIR 800 Connection: AGA type plug Outlet: 7 mm flow nipple
Angled plug CO2 hose tail 7mm, DIN, ISO
Angled plug for carbon dioxide with 7 mm sleeve and check valve Gas type: Carbon dioxide / CO2 Connection: Plug according to DIN 13260 Part 2 Outlet: 7 mm hose sleeve Colour coding: according to ISO 9170-1 (grey)
Angled Plug CO2 Nozzle 7mm, DIN, neutral
Angled plug for carbon dioxide with 7 mm nozzle and check valve Gas type: Carbon dioxide / CO2 Connection: Plug according to DIN 13260 Part 2 Outlet: 7 mm hose nozzle Colour coding: neutral (black)
Angled plug CO2, hose tail 7mm, DIN, ISO V4A
Angled plug for carbon dioxide with 7 mm nozzle and check valve Plug front part made of 1.4404 (stainless steel) Gas type: carbon dioxide / CO2 Connection: plug according to DIN 13260 Part 2 Outlet: 7 mm hose nozzle Colour coding: according to ISO 9170-1 (grey)
Angled plug N2 nozzle 7mm, DIN, neutral
Angled plug for Nitrogen with 7 mm sleeve and check valve Gas type: Nitrogen / N2 Connection: Plug according to DIN 13260 Part 2 Outlet: 7 mm hose sleeve Colour coding: neutral (black)
Angled Plug N2 Sleeve 7mm DIN neut
Angled plug for N2 with 7 mm nozzle and check valve Gas type: Nitrogen Connection: Plug according to DIN 13260 Part 2 Outlet: 7 mm hose nozzle Colour code: neutral (black)
Angled plug N2 with nozzle 7mm - AGA
Angled plug with check valve Gas type: Nitrogen / N2 Connection: Plug according to SS 87 524 30 (AGA) Outlet: 7 mm flow nozzle
Angled Plug N2-800 Socket 7mm DIN neut
Angled plug for N2-800 with 7 mm sleeve and check valve Gas type: Nitrogen 800 Connection: Plug according to DIN 13260 Part 2 Outlet: 7 mm hose sleeve Colour coding: neutral (black) without gas type identification
Angled plug N2O nozzle 7mm, DIN ISO V4A
Angled probe for nitrous oxide with 7 mm nozzle and check valve Probe front part made of 1.4404 (stainless steel) Gas type: Nitrous oxide / N2O Connection: Probe according to DIN 13260 Part 2 Outlet: 7 mm hose nozzle Colour coding: according to ISO 9170-1 (blue)
Angled plug N2O nozzle 7mm, DIN, neutral
Angled plug for nitrous oxide with 7 mm sleeve and check valve Gas type: Nitrous oxide / N2O Connection: Plug according to DIN 13260 Part 2 Outlet: 7 mm hose sleeve Colour coding: neutral (black)

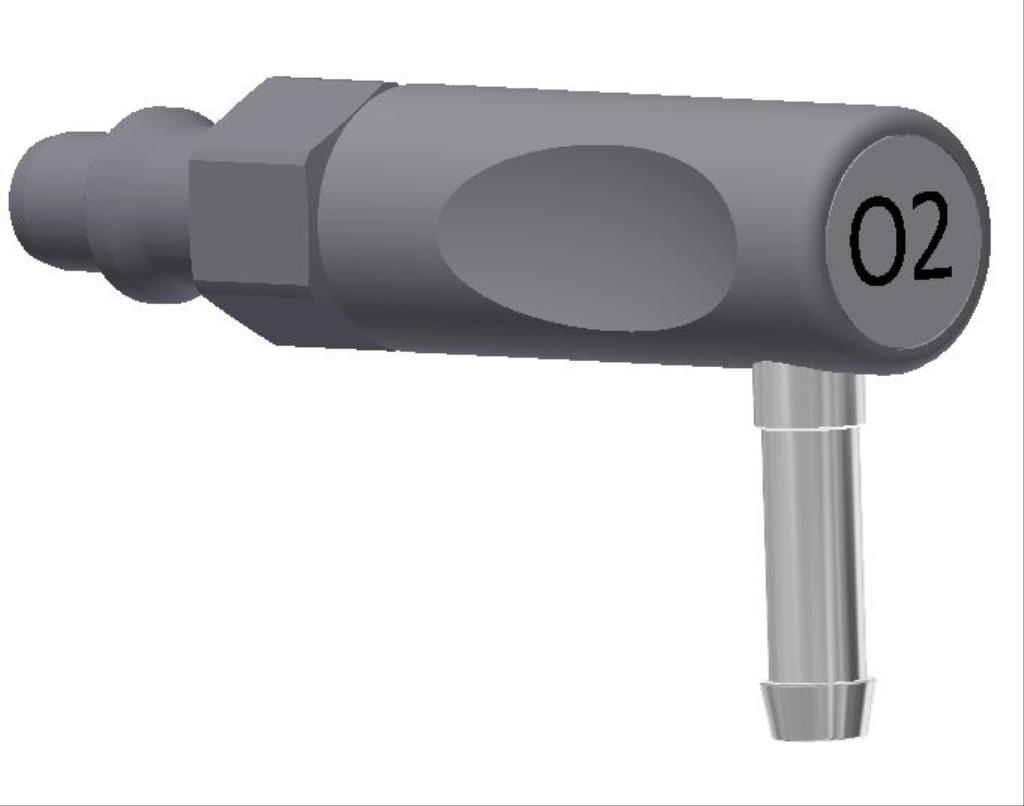

Angled Plug O2 Hose barb 7mm, DIN, ISO
Angled plug for Oxygen with 7 mm nozzle and check valve Gas type: Oxygen / O2 Connection: Plug according to DIN 13260 Part 2 Outlet: 7 mm hose nozzle Colour coding: according to ISO 9170-1 (white)
Angled Plug O2 Hose barb 7mm, DIN, ISO V4A
Angled plug for oxygen with 6 mm nozzle and check valve Plug front part made of 1.4404 (stainless steel) Gas type: Oxygen / O2 Connection: Plug according to DIN 13260 Part 2 Outlet: 7 mm hose nozzle Colour coding: according to ISO 9170-1 (white)

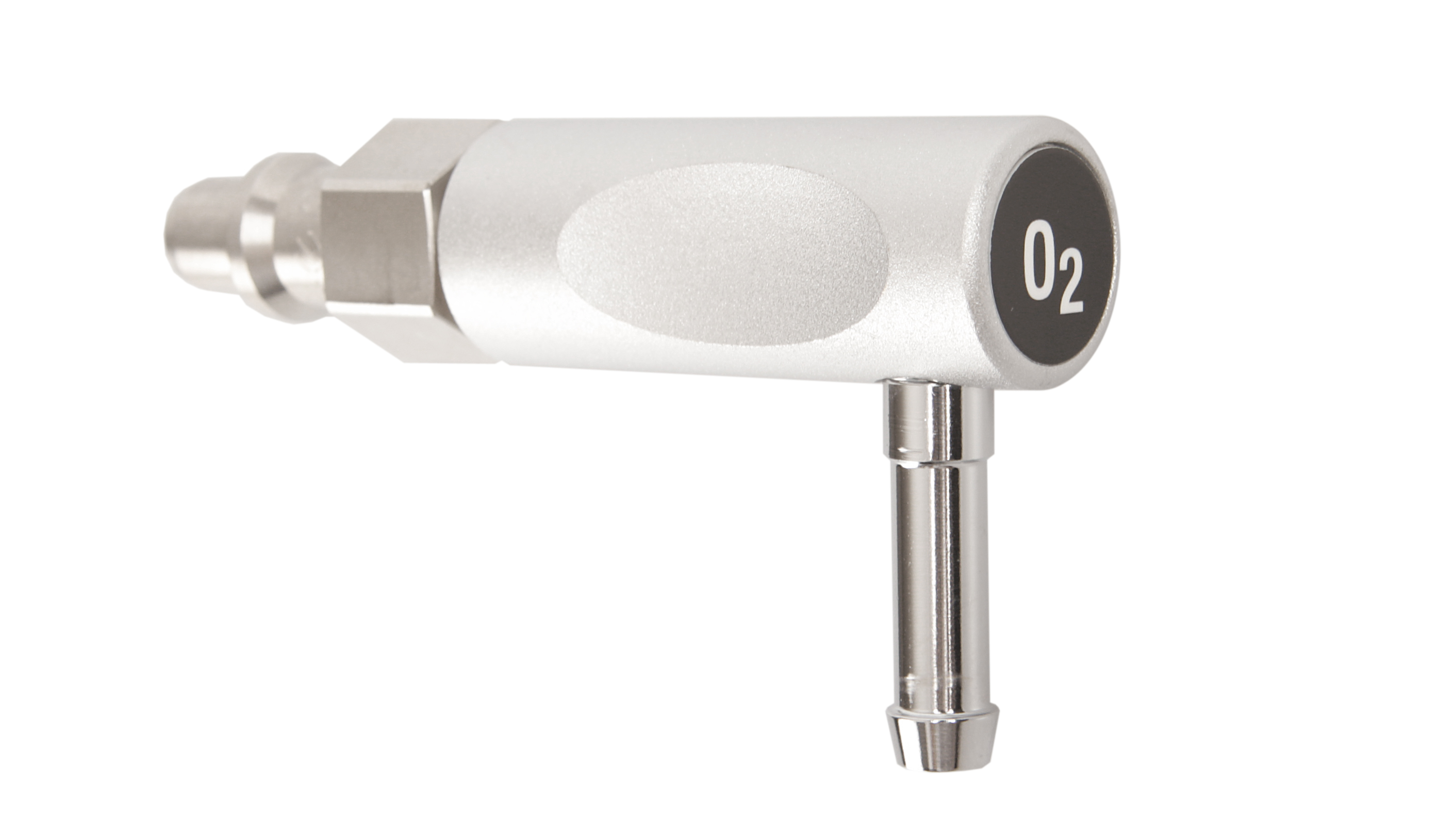

Angled plug O2 nozzle 7mm, DIN, neutral
Angled plug for oxygen with 7 mm hose tail and check valve Gas type: Oxygen / O2 Connection: Plug according to DIN 13260 Part 2 Outlet: 7 mm hose tail Colour coding: neutral (black)

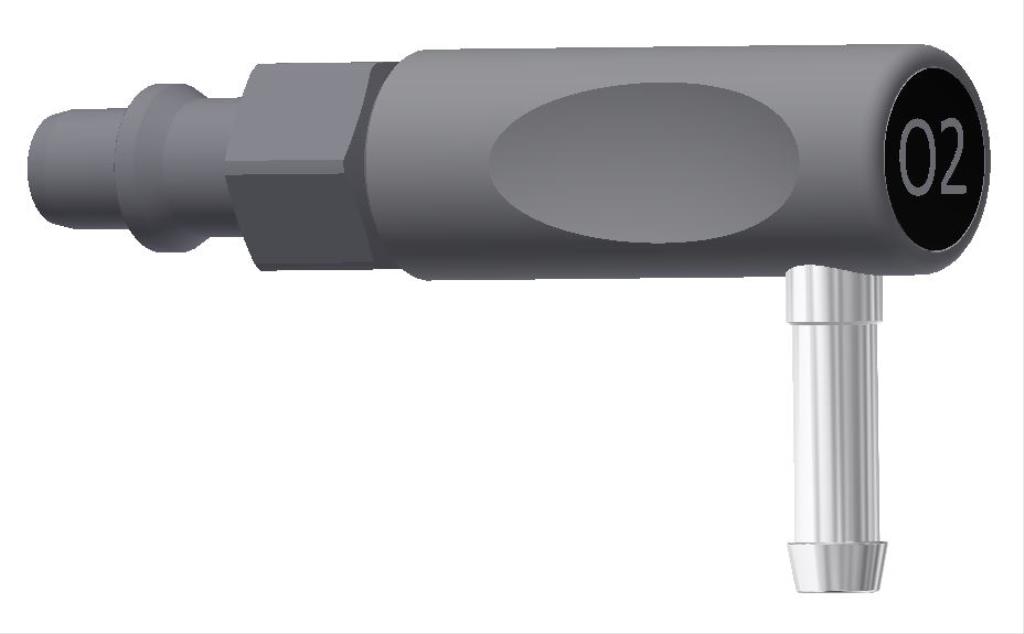

Angled Plug O2 with 7mm Hose Tail - BS
Angled probe with check valve Specification: Gas type: Oxygen / O2 Inlet: Probe according to BS 5682 Outlet: Hose tail 7 mm

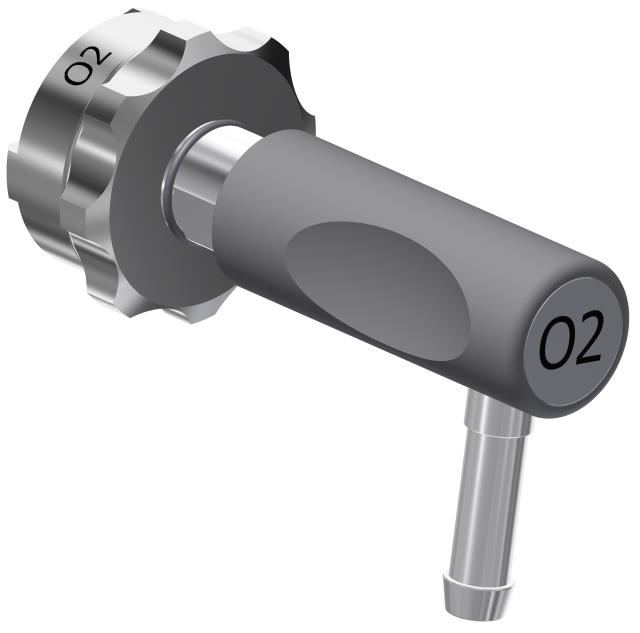

Angled plug O2 with 7mm nozzle - NF
Angled plug with check valve Specification: Gas type: Oxygen Inlet: Plug according to norme francaise NF S 90-116 Outlet: Nozzle 7 mm
Angled plug VAC nozzle 7mm, DIN, neutral
Angled Plug for Vacuum with 7 mm nozzle Gas type: Vacuum / VAC Connection: Plug according to DIN 13260 Part 2 Outlet: 7 mm hose nozzle Colour coding: neutral (black)
Angled plug VAC nozzle 7mm, DIN,ISO V4A
Angled plug for vacuum with 7 mm nozzle Plug front made of 1.4404 (stainless steel) Gas type: Vacuum / VAC Connection: Plug according to DIN 13260 Part 2 Outlet: 7 mm hose nozzle Colour coding: according to ISO 9170-1 (yellow)
Reliable low-pressure hoses for medical gases.
Our low-pressure hoses are gas-specific colour-coded according to ISO 32 and ensure secure, leak-free connections between terminal unit and device. They are available in various lengths and versions and are ideal for daily use in clinics and practices.
